INVEST TODAY AND START SAVING TOMORROW!

Reduce fuel consumption and labor costs collecting and loading round hay bales. Increase production by collecting, loading and stacking round hay bales two at a time.

Reduce wear & tear on your tractor/loader clutch, transmission and steering components by reducing the forward/reverse cycles and repositioning required to collect bales.

Safer and easier for the operator due to fewer direction changes. Operator will be able to continually travel forward while collecting bales instead of stopping and backing up to reposition two bales together. This greatly reduces the number of times required to backup for each bale collection cycle thus creating a safer work area and decreasing operator fatigue.

The SwingSpear design is gentle on net wrap and twine because the bales never rub together or on the ground. Operator will control the single hydraulic cylinder to swing the first bale up and over out of the way so the second bale can be speared without stopping and repositioning and most importantly without rubbing against each other or on the ground.

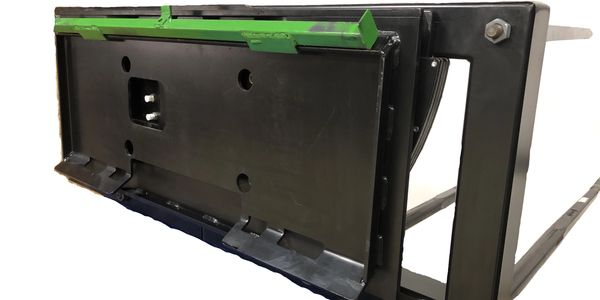

The *Original SwingSpear was designed using the Euro/Global mount. The master plate is necessary to accommodate other tractor/loader attachments. Purchase a master plate for each tractor/loader you own for versatility or for single loader application requiring only Euro/Global, purchase the *Original SwingSpear.

4 heavy duty 49" x 1 3/4" bale spears have a load capacity of 3600 lbs. each.

2 standard 27" x 1 3/8" stabilizing spears have a load capacity of 1500 lbs. each.

Fully welded 3 1/2" x 1/4" thick square tubing frame.

1/2" thick main back frame

1/2" thick master plate.

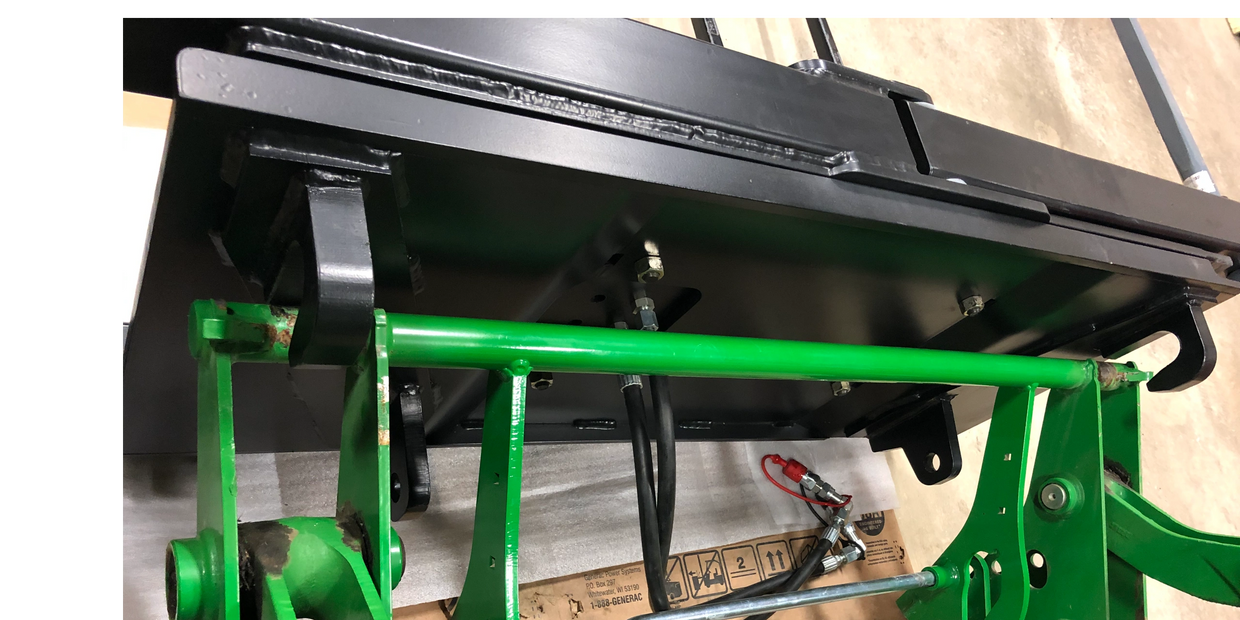

Friction areas on SwingSpear are protected with replaceable wear parts. The swing mechanism has inner and outer UMHW polyethylene wear pads and an oil-filled cast nylon wear pad. The pivot pin is operator lubricated and has an oil-embedded bronze bushing. Black powder coat finish for durability.

While carrying 2 bales you have the ability to set them down and disengage them one at a time. This feature assists in more efficient stack building and faster truck/trailer loading.

In cattle feeding operations, the net wrap or twine can be removed with the bales remaining on the spears by operating the SwingSpear to the up position which separates the bales allowing room to remove the wrap material.

SwingSpear is only 5 feet wide so the operator has the capability of spearing a single bale in a row of bales. Other double bale spear attachments are too wide to accomplish this task.

SwingSpear is capable of picking up and carrying two, 5-foot diameter round bales. Heavy-duty construction of the SwingSpear combined with the weight of two hay bales can be very heavy. Check your tractor/loader owner's manual for load capacity.

The point where the SwingSpear comes together is notched to allow clearance to keep hay and wrap material from becoming pinched. This allows for a damage free handling process to the bale edge and net wrap or twine.

SwingSpear's patented design is made right here in the USA! Farmer/owner/operator designed and 5 seasons of testing in the Pacific Northwest.

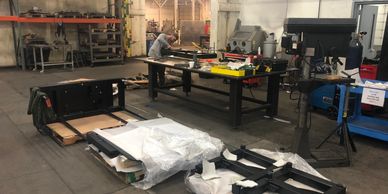

Engineered and manufactured by Hydrafab Northwest, Inc., Spokane Valley, Washington.

Patent #11,510,368
